KLEEN SPRING INSTRUCTIONS |
|
|

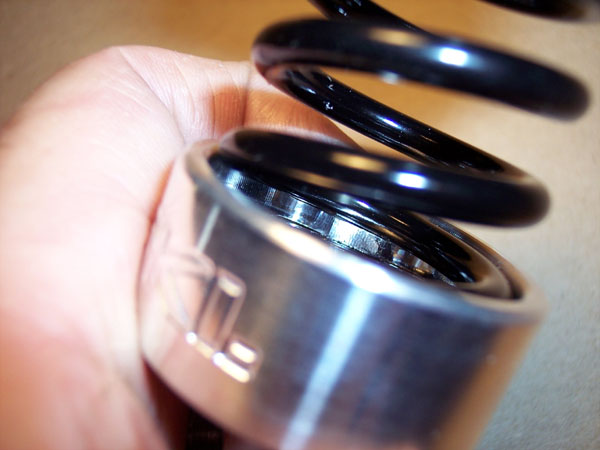

KLEEN SPRINGS ARE HELD IN BY A LOCKING TAB INSIDE OF EACH CUP. WHEN THE SPRING IS PROPERLY INSTALLED INTO THE CUPS "YOU SHOULD NOT BE ABLE TO TURN EITHER CUP IN A CLOCKWISE DIRECTION" |
|
|
|
|
|
KLEEN SPRINGS ARE HELD IN BY A LOCKING TAB INSIDE OF EACH CUP. |
|
|
|
|
|
WHEN THE SPRING IS PROPERLY INSTALLED INTO THE CUPS "YOU SHOULD NOT BE ABLE TO TURN EITHER CUP IN A CLOCKWISE DIRECTION" |
|
|
|
|
| 1: LINE UP YOUR SEAT TABS ON THE FRAME . SO THAT THE THIN PART OF THE TAB RUNS FRONT TO BACK OF THE FRAME. WIDER PART OF THE TABS SHOULD BE SEEN ON THE SIDE OF THE SEAT. | |
|
|
|

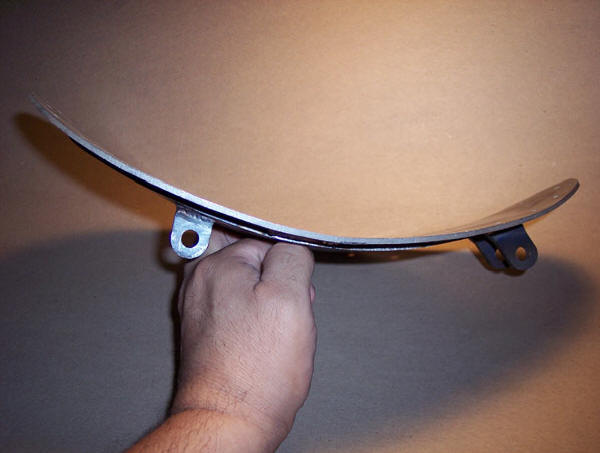

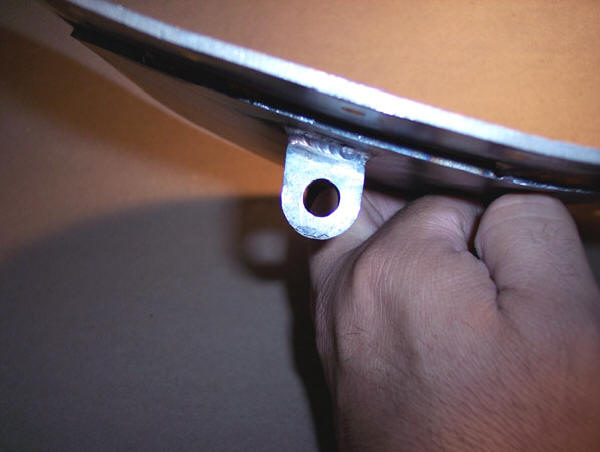

| 2: WELD TAB ON SEAT PAN. | |
|
|
|

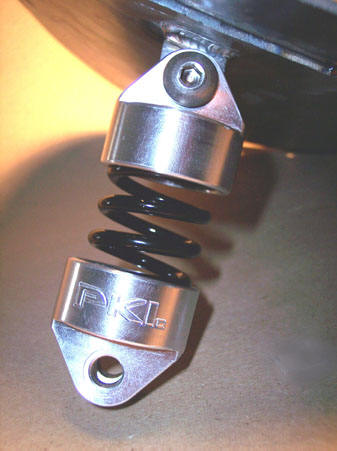

| 3: INSTALL SPRINGS ASSEMBLY BOLTED TO THE SEAT PAN. | |
|
|
|
| 4: NEXT INSTALL TAB ON LOWER CUP OF SPRING ASSEMBLY | |
|
|
|

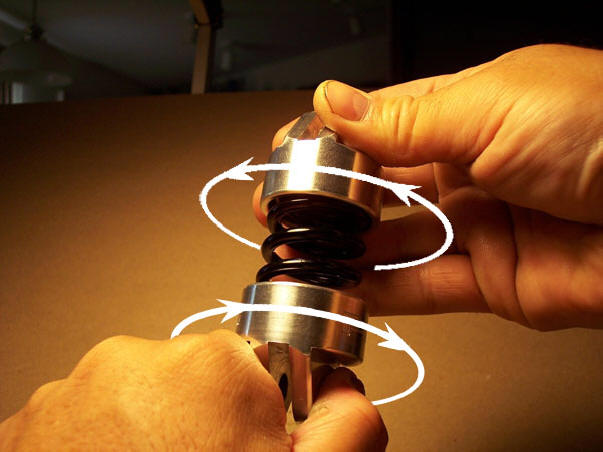

| 5: TURN LOWER CUP CLOCKWISE UNTIL LOWER CUP LINES UP WITH TOP CUP & BINDS THE SPRING. THEN YOU CAN TACK WELD TABS IN PLACE. REMOVE SPRING ASSEMBLY AND WELD TAB TO FRAME. REINSTALL SPRING ASSEMBLY. USING 3/8 STAINLESS STEEL BOLTS AND NYLOCKS SUPPLIED. | |
|
|
|
| 6: SPRINGS WORK THE BEST WHEN USED IN A STRAIGHT UP AND DOWN POSITION OR 5 DEGREES BACK. I WOULD NOT RECOMMEND MORE THAN 10 DEGREES BACK. DO NOT PLACE LOWER CUP FORWARD OF THE TOP UPPER CUP. | |
|
|
|
| 7: IF LOWER SPRING CUPS ROCK FRONT TO BACK. REMOVE SPRING ASSEMBLY AND TURN IT AROUND (BACK OF SPRING IS NOW FRONT) THERE IS A NATURAL CURVE OF THE SPRINGS. YOUR SPRINGS SHOULD USE THE SAME CURVE. | |
|
TOP TO LOWER LEFT |

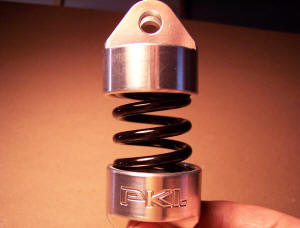

TOP TO LOWER RIGHT |
|
|
|
